Forged Steel Flange Globe Valve

Forged Steel Flange Globe Valve

Feature:
Pressure: 150LB-2500LB
Design and manufacture conform to API 602, BS5352 & ASME 16.34
Test and check conform to API 598, API 6D
Remarks conform to MSS-SP-25

Structure of Forged Steel Flange Globe Valve:
Full bore or reduced bore
Outside screw and yoke
Self-centering gland
Bolted bonnet ,spiral would eight-square gasket
sealing bonnet or pressure seal bonnet
Integral type top seat

Parts Materials of Forged Steel Flange Globe Valve:
NO. Parts CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Valve body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Gasket Corrugated SS + graphite SS+PTFE
3 Bolt A193 B7 A193 B16 A193 B8 A193 B8M
4 Cylindrical pin A276 420 A276 304
5 Packing pressure sleeve A276 410 A182 F304(L) A182 F316(L)
6 eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Nut A194 2H A194 4 A194 8 A194 8M
8 Valve stem nut A276 410
9 Nut A194 2H A194 4 A194 8 A194 8M
10 data plate SS
11 Hand wheel A197
12 Packing plate A216 WCB A351 CF8
13 Packing Flexible Graphite PTFE
14 Bonnet A105 A276 304 A182 F304(L) A182 F316(L)
15 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
16 Valve clack A276 420 A276 304 A276 304(L) A276 316(L)
Suitable medium Water, steam, oil, etc. Water, steam, oil, etc. Nitric acid, acetic acid, etc.
Suitable temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Dimensions (mm) and Weights (Kg) of Forged Steel Flange Globe Valve:

NPS 1/2" 3/4" 1" 11/4" 11/2" 2"
L(RF)
L1(BW)
150LB 108 117 127 140 165 203
300LB 152 178 203 216 229 267
600LB 165 190 216 229 241 292
H(open) 150LB~300LB 166 171 207 240 258 330
600LB 171 207 240 258 330 380
W 100 100 125 160 160 180
Weight 150LB RF 4.5 6.9 9.8 13.5 19.5 28.0
BW 2.3 3.6 7.8 8.2 12.0 15.0
300LB RF 4.8 7.7 11.0 16.8 21.2 32.6
BW 2.8 4.0 8.5 9.2 12.6 16.8
600LB RF 5.6 7.8 12.5 17.0 23.5 38.8
BW 3.4 4.7 9.2 10.5 13.3 18.9

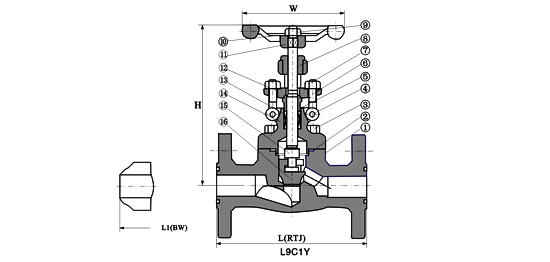

Structure Chart of Forged Steel Flange Globe Valve:
Structure Chart of Forged Steel Flange Globe Valve

Statement: this information is just for reference, for detailed information, please contact us.
